DAQ6510 數據采集和記錄萬用表系統
DAQ6510 數據采集和記錄萬用表系統DAQ6510 具有觸摸屏用戶界面，可在儀器上更快完成設置、實時監控測...
DAQ6510 具有觸摸屏用戶界面，可在儀器上更快完成設置、實時監控測試狀態以及分析詳細數據，從而實現前所未有的簡單性。
Reduce your test setup, execution, and analysis time

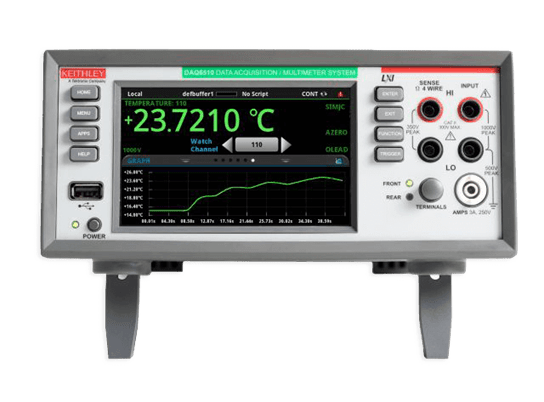

Set up and run a test simply and quickly without having to write a test program. The DAQ6510 Data Acquisition and Logging Multimeter System's intuitive touchscreen provides simple configuration with visual and intuitive test setups, real-time visualizations of scan status for catching problems early to avoid lost test time, and easy analysis of test data.
Highlights

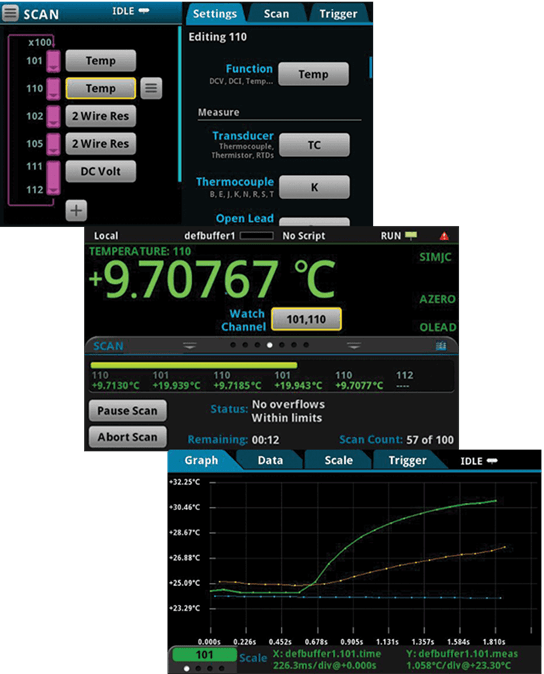

Configure: Setup a multi-channel scan with multiple measurement functions using one measure and scan configuration menu.
Run and monitor: Display the progress of the scan during the test to immediately see measurements out of range and limits exceeded.
Analyze: Display and analyze results using the plotting and statistics functions. Use the touchsceen's pinch and zoom capability to study results in depth. Use cursors to compute statistics on segments of the data.
The DAQ6510 is made to measure with 6?-digit resolution and 15 built-in measurement functions. Make low-current, low-resistance, and temperature measurements, and see transient signals with the built-in digitizer.
Highlights
Voltage: 100 nV to 1000 V with 0.0025% basic DCV accuracyCurrent: 10 pA to 3A

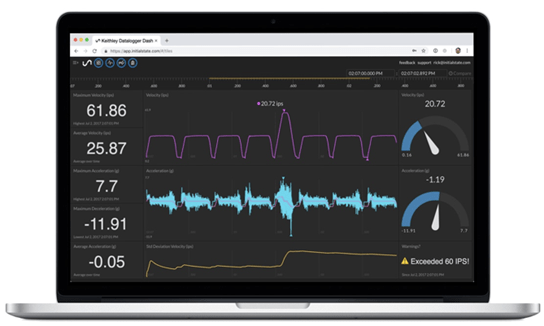

Now you can stream data from your DAQ6510 and create real-time IoT dashboards and anywhere-accessible data visualizations
Highlights
Monitor and log data streams directly from the DAQ6510 in real-time and from anywhere - with no PC-in-the-middle required.
Get e-Mail and text alerts using triggers based on measurement thresholds and other mathematical rules.
Access, visualize, archive, share, transform, and analyze current and historical data from anywhere - no install required.
Create dashboards for standardization, repeatability, and readability.
Overlay, time-dilate, and compare data sets across test runs
Maximize the amount of data collected in the minimum amount of time. Make faster measurements, switch channels faster, and scan more channels.
Highlights
Make measurements as short as 0.0005 power line cycles or 8.3 μs (10 μs) for 60 Hz (50 Hz) power lines.
Connect to your DUTs quickly and reliably

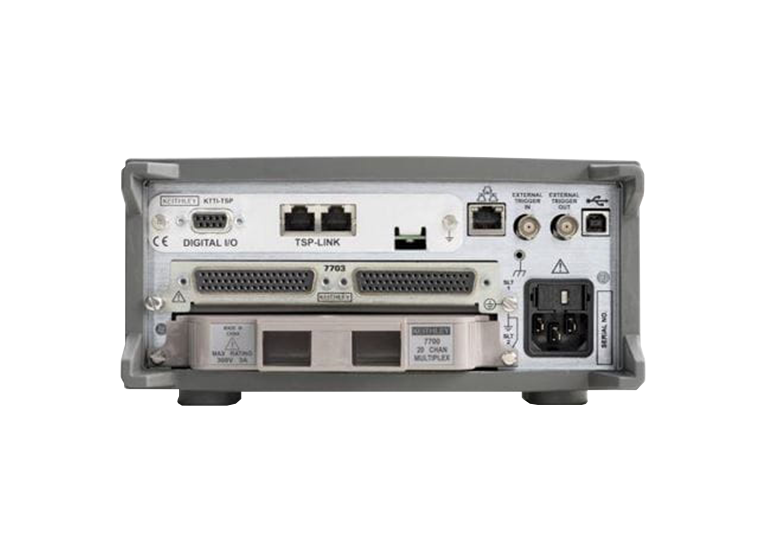

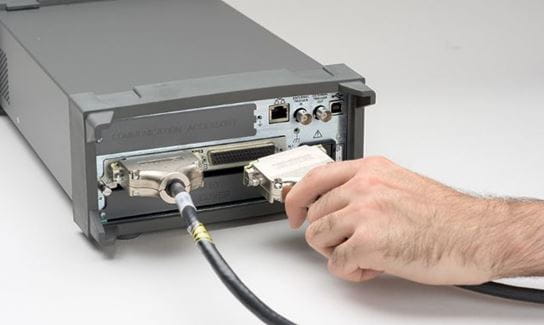

The DAQ6510 makes you more efficient before you even start testing with mass-terminated, D-sub connections on many of its plug-in switch modules. This minimizes downtime when changing plug-in switch modules during system maintenance or when you're setting up a new test system.
Choose from a complete set of interface options

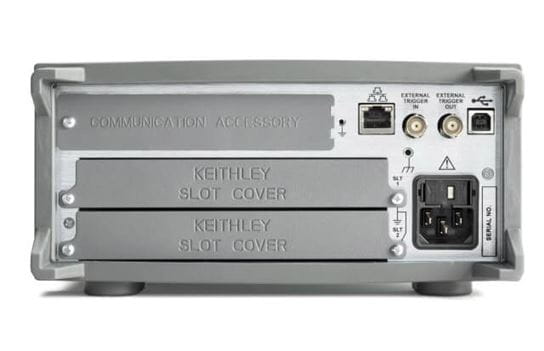

Standard LAN, LXI, and USB interfaces allow easy integration into your test system. Optional, field-installable GPIB and RS-232 interfaces include six digital I/O ports for direct instrument-to-instrument synchronization and communication. The DAQ6510 will work easily with any PC interface you choose.
Fast PC automation with the KickStart Data Acquisition Application

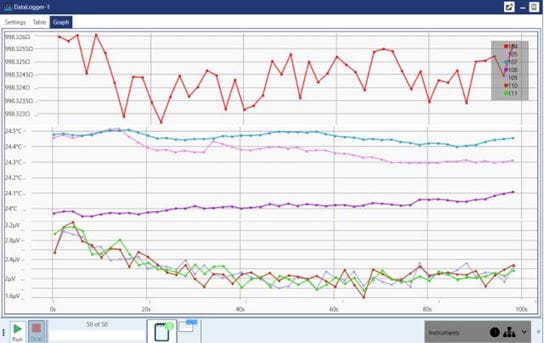

Use the KickStart Instrument Control Software to quickly program a data acquisition test on a PC. The software does not require programming; just enter a test setup using the menu screens. Then visualize your results in tabular and graphical formats.
| 型號 | 通道 | 插件開關模塊 | 數字化器 | 報價 |
|---|---|---|---|---|
| DAQ6510 | 高達 80 | 12 個選項 | 1 M 采樣/秒 | US $2,020 配置和報價 |
| DAQ6510/7700 | 20 | 1 | 1 M 采樣/秒 | US $2,520 配置和報價 |
