主要特點
9 kHz 至 20 GHz
出色的靈敏度，使用前置放大器時 < –161 dBm (1 Hz)
一體化分析儀：頻譜分析儀、網絡分析儀和 CAT
內部跟蹤源、VSWR 電橋、偏置器
采用堅固耐用的防水外殼，適用于現場應用
特點性和優點
多功能分析儀
EMI diagnostics in the lab or in service

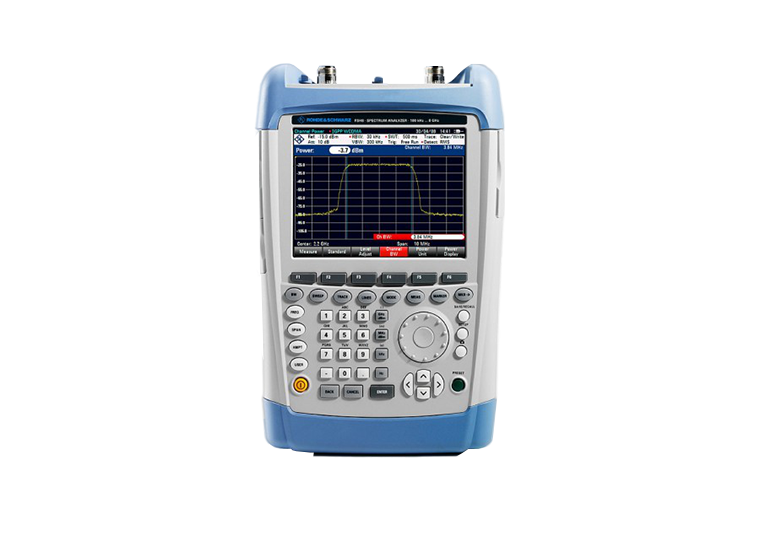

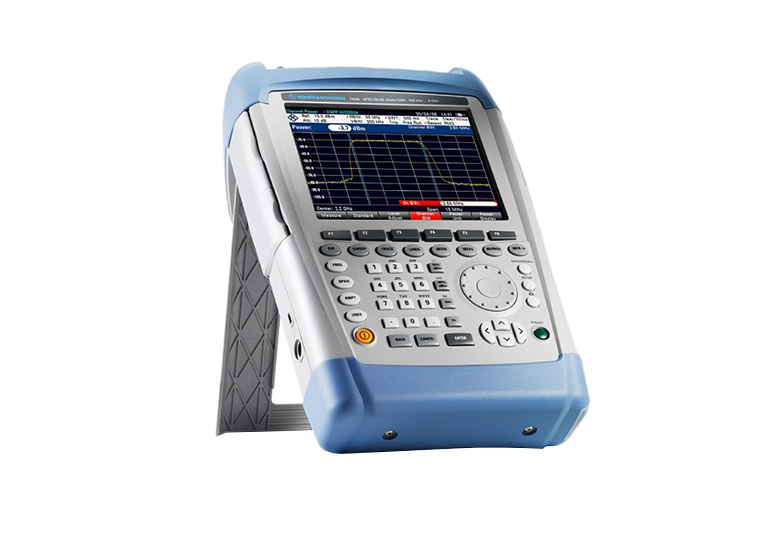

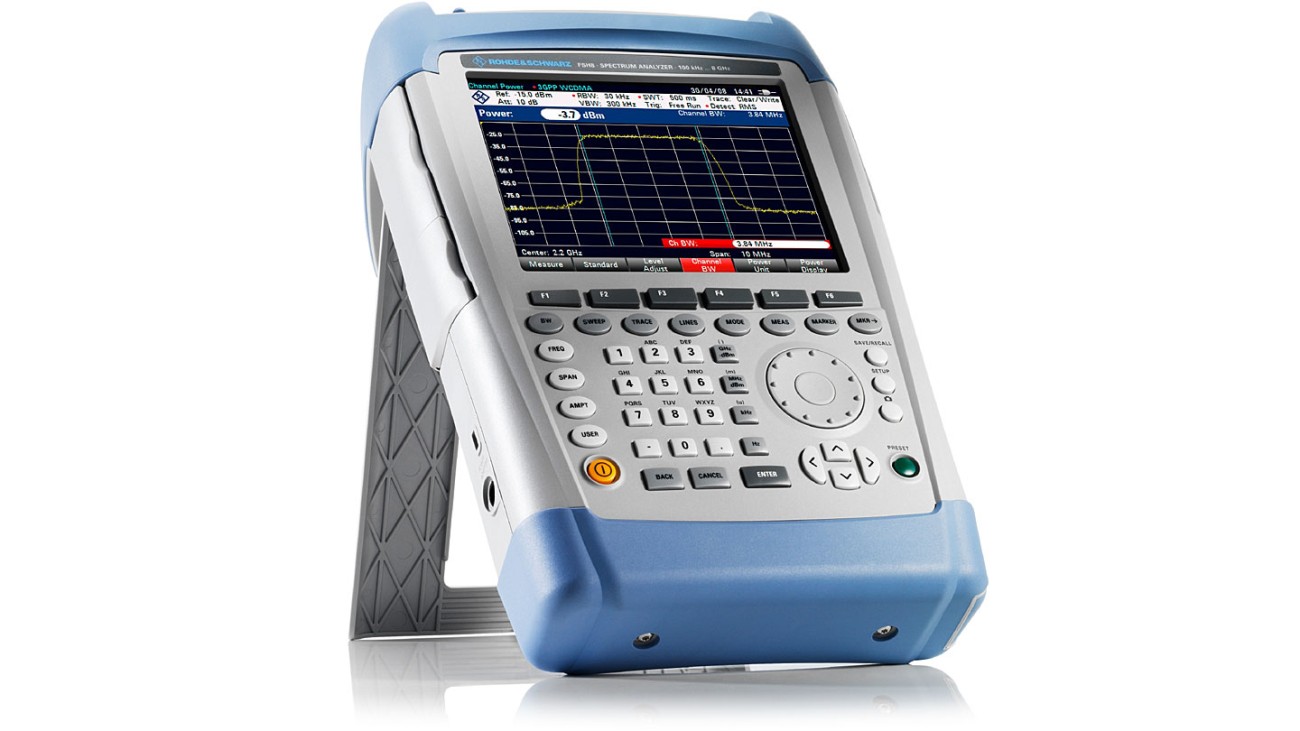

The R&S?FSH handheld spectrum analyzer has all the essential functions for indoor and outdoor applications:
Installation and maintenance of transmitter stations
Analysis of transmit signals (LTE, NB-IoT, TD-SCDMA, WCDMA, CDMA, GSM, etc.)
Channel power and spurious emission measurements
Cable and antenna measurements
Scalar or vector network analysis
Interference analysis
Field strength measurements
可靠伙伴
R&S FSH 手持式頻譜分析儀提供多種型號。這款一體化分析儀具備內置跟蹤源、VSWR 電橋和偏置器。無需使用多臺分析儀以進行現場測量。
出色的射頻性能
Despite its small form factor, the R&S?FSH handheld spectrum analyzer has excellent sensitivity and third order intercept characteristic. The analyzer therefore has a good dynamic range to handle both low-power and high-power signals.
DANL (RBW = 1 Hz, normalized) with preamplifier, 8 GHz to 13.6 GHz: –162 dBm typ.
TOI (IP3), 300 MHz to 3.6 GHz: +15 dBm typ.
精簡準備工作
是否要在有限時間內完成現場任務？可以在前往現場之前，使用 R&S InstrumentView 軟件預先定義測量參數和步驟。這有助于節省時間并減少現場出現的人為錯誤。
